Crane for Iveco Flatbed

When heavy machinery and materials need to be handled every day, a crane for a flatbed truck is an efficient and ergonomic solution. In this case, we installed a Knap On Crane Hand Hydraulic on an Iveco flatbed truck for NCO Byg.

For NCO Byg, we have supplied and installed several cranes in both flatbed trucks and panel vans to make everyday work easier for their employees. The need typically arises when lifting plate compactors and other heavy equipment that would otherwise have to be handled manually.

Hand hydraulic crane with manual extension and electric wire hoist

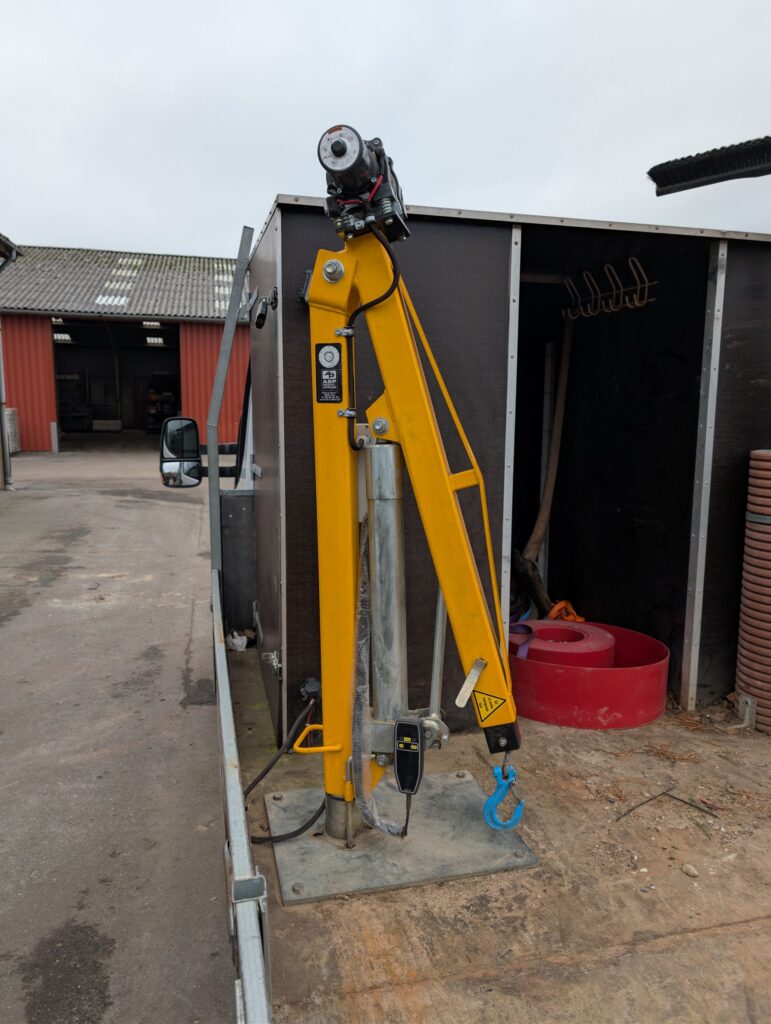

The installed solution is a Knap On Crane Hand Hydraulic featuring a manual hydraulic pump for raising the jib, a manual extension, and an electric wire hoist.

The crane features:

Manual extension of 1.5 metres
Lifting capacity of 350 kg
Lifting height of up to 2 metres when fully extended
Powered by the vehicle’s 12V battery

The combination of manual hydraulics and an electric wire hoist provides a robust and reliable truck crane that is well suited for daily use on construction sites.

The wire hoist operates from the vehicle’s 12V battery, but the system is designed so that it does not drain the battery unnecessarily and does not require the engine to idle during operation. This provides both practical and economic benefits in daily use.

Cranes for flatbed trucks and panel vans

At NCO Byg, our cranes are installed in both flatbed trucks and panel vans. Regardless of the vehicle type, they help create a safer and more efficient working environment.

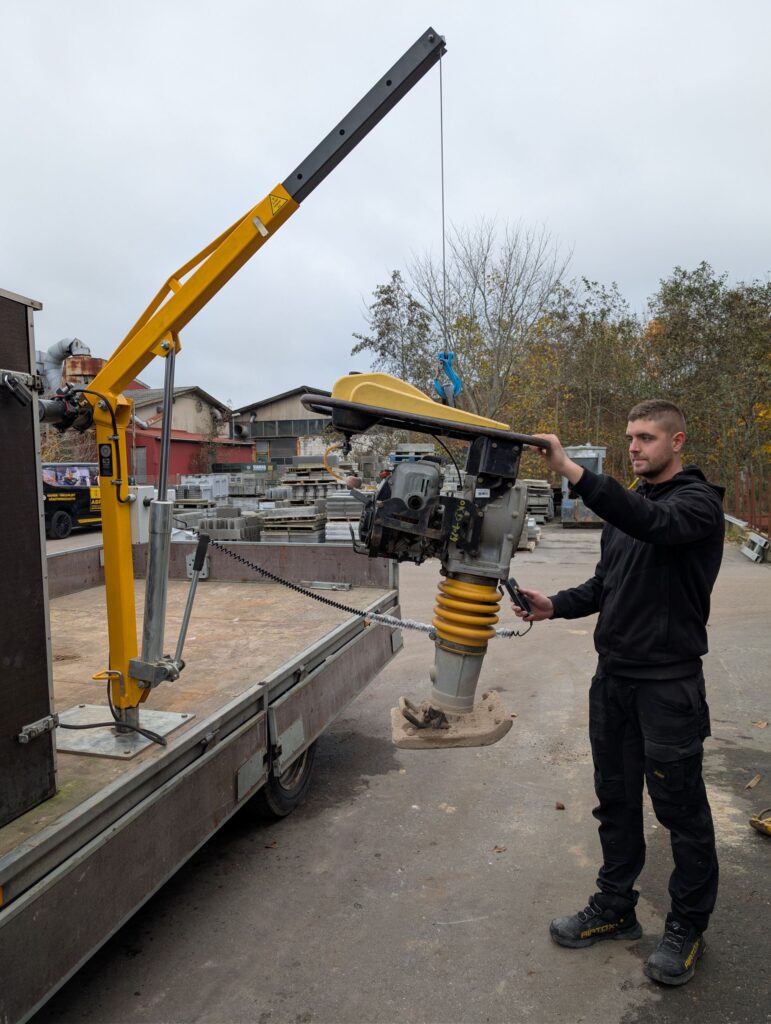

A flatbed truck crane makes it possible to:

Lift heavy equipment directly from the ground onto the truck bed
Eliminate manual lifting of plate compactors, trench rammers, and other heavy machinery
Reduce the risk of workplace injuries
Improve loading and unloading efficiency on construction sites

The solution is simple, durable, and designed to meet the daily demands of the construction industry.

Universal base plate system provides maximum flexibility

At NCO Byg, we have installed our universal base plate system in multiple locations and across several vehicles. This allows the cranes to be moved wherever they are needed.

Our cranes can easily be lifted out of one base plate and installed in another base plate mounted in a different vehicle or flatbed truck, all without the use of tools.

This enables the company to:

Maximise crane utilisation across multiple vehicles
Match lifting capacity to the day’s tasks
Invest in flexible solutions instead of fixed installations

For companies operating several vehicles, this provides both a practical and cost-effective lifting solution.

Kraner til alle typer køretøjer og arbejdsopgaver

Vores kraner kan monteres i alle typer varebiler, kassebiler og ladbiler, men også på trailere og i værksteder. Uanset om behovet er en kran til din varebil eller en fleksibel løsning til brug flere steder, har vi løsninger, der passer til din hverdag.

Vi tilbyder kraner i flere varianter, der løser forskellige arbejdsopgaver, fra lette serviceopgaver til tunge løft i bygge- og anlægsbranchen. Sortimentet spænder fra helt manuelle kraner til fuldt elektriske løsninger, afhængigt af krav til løftekapacitet, rækkevidde og betjening.

Derudover har vi et bredt udvalg af ekstraudstyr og tilvalg, som gør kranerne anvendelige til mange forskellige opgaver i det daglige arbejde.

Alle vores kraner er udviklet med ét formål, at tage det tunge løft og bidrage til et bedre arbejdsmiljø.

Fælles for alle vores løsninger er, at de tilpasses kundens behov, køretøj og arbejdsopgaver. På den måde sikrer vi, at du får en sikker, stabil og driftsikker løsning, der fungerer optimalt i din hverdag.
