Crane for Mercedes Vito

In this case, we installed a Knap On Crane with Electric Lift, electric extension, and an electric wire hoist in a Mercedes Vito. The solution is used for handling tools, machinery, and materials that need to be moved in and out of the cargo area without heavy manual lifting.

The objective was to create a flexible and reliable lifting solution that improves workplace ergonomics while maintaining the vehicle’s payload capacity and cargo space.

Knap On Crane Electric Lift – 350 kg

The selected crane is designed with a focus on high functionality, low own weight, and safe, reliable handling of equipment.

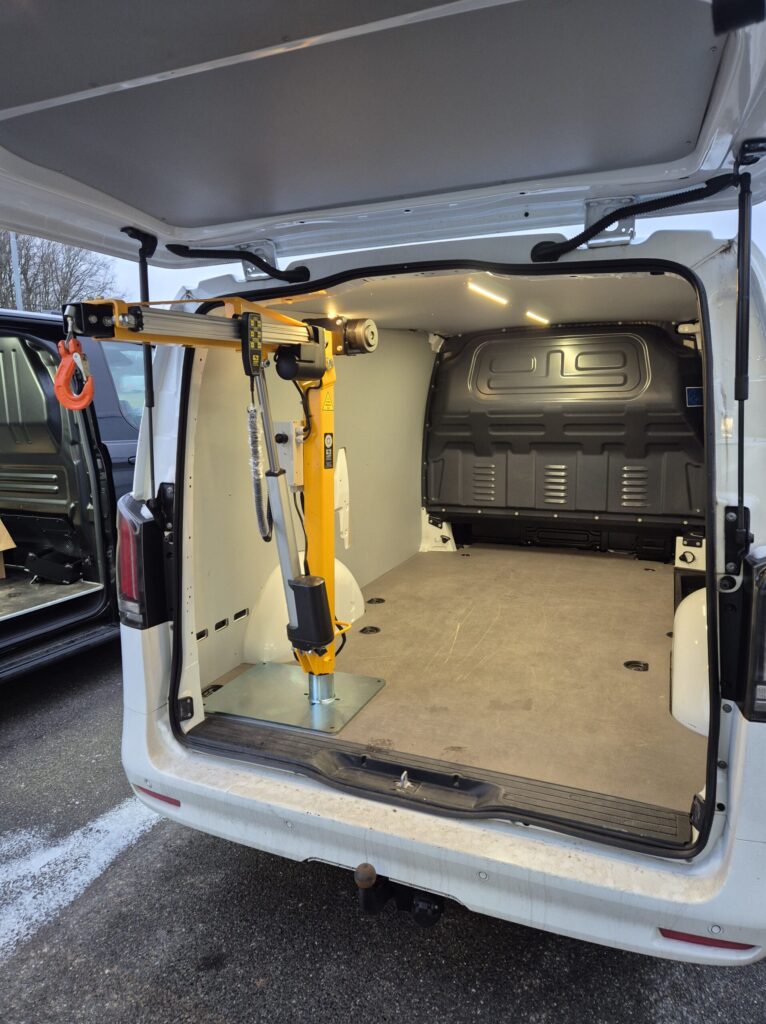

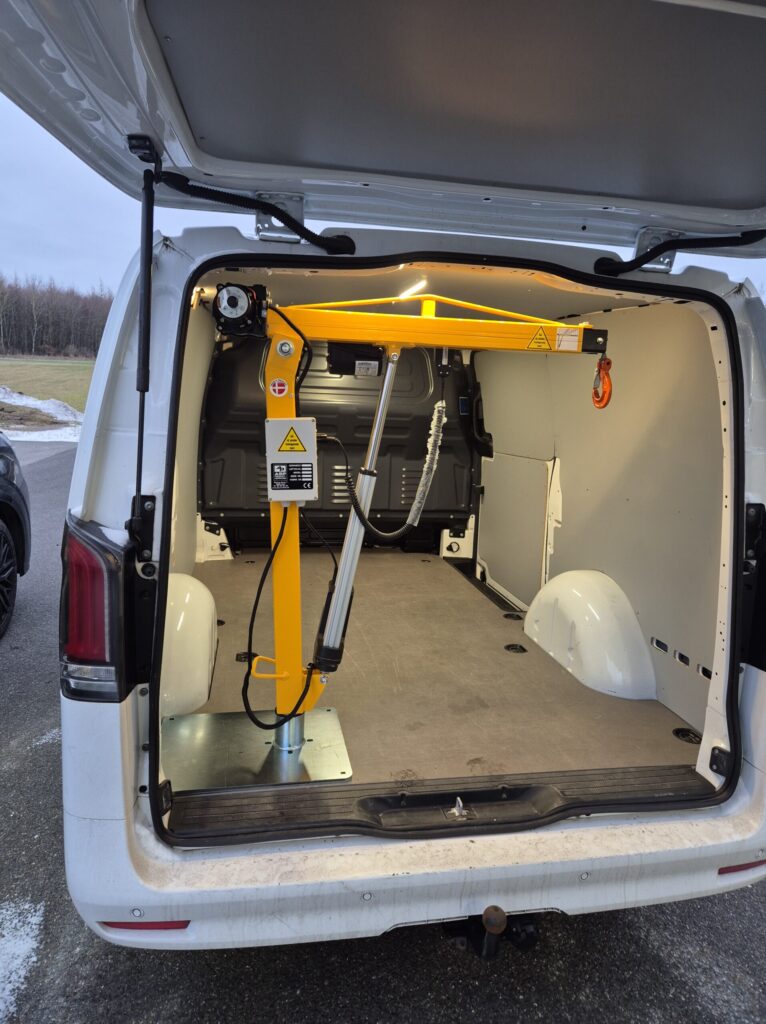

Mounted in the rear door, the crane can rotate deep into the cargo area to reach equipment stored at the front of the vehicle. It can then be swung back out through the rear door, allowing loads to be lifted and placed safely outside the van.

With electric lifting, electric extension, and an electric wire hoist, the operator benefits from a complete, ergonomic, and efficient lifting solution.

When not in use, the crane folds away neatly, taking up very little cargo space and leaving room for shelving systems, tools, and materials. It requires no additional vehicle inspection or approval after installation.

Specifications:

Lifting capacity: 350 kg
Own weight: 38 kg
Outreach: Up to 1.5 metres
Operation: Electric remote control

Universal base plate system for maximum flexibility

The crane is mounted using our universal base plate system, designed to provide maximum flexibility across multiple vehicles.

The base plate allows the crane to be transferred between vans or trailers fitted with compatible base plates, completely without tools. This enables businesses to maximise the use of a single crane across several vehicles and applications, making the system both practical and cost-effective.

The crane can be removed and reinstalled quickly and safely, ensuring it is always available exactly where it is needed for the day’s work.

Cranes for All Types of Vehicles and Lifting Applications

Our cranes can be installed in all types of vans, panel vans and flatbed trucks, as well as on trailers and in workshops. Whether you need a crane for your van or a flexible solution that can be used in multiple locations, we have solutions to suit your everyday needs.

We offer cranes in several variants designed for a wide range of applications, from light service tasks to heavy lifting in the construction and civil engineering industries. Our range includes everything from fully manual cranes to fully electric solutions, depending on your requirements for lifting capacity, reach and operation.

We also offer a wide range of accessories and optional equipment, making the cranes suitable for many different tasks in everyday operations.

All our cranes are developed with one purpose: to take care of heavy lifting and contribute to a better working environment.

What all our solutions have in common is that they are tailored to the customer's needs, vehicle and specific applications. This ensures that you get a safe, stable and reliable crane solution that performs optimally in your daily work. See more
