Crane for Renault Trafic

In this case, we installed a Knap On Crane with Electric Lift, electric extension, and wire hoist in our own service vehicle at ASP Product.

The crane is used for lifting the company’s own products and machines during service tasks and deliveries. The goal was to create a flexible and reliable lifting solution that reduces heavy manual lifting and improves the working environment for employees while maintaining the vehicle’s interior flexibility.

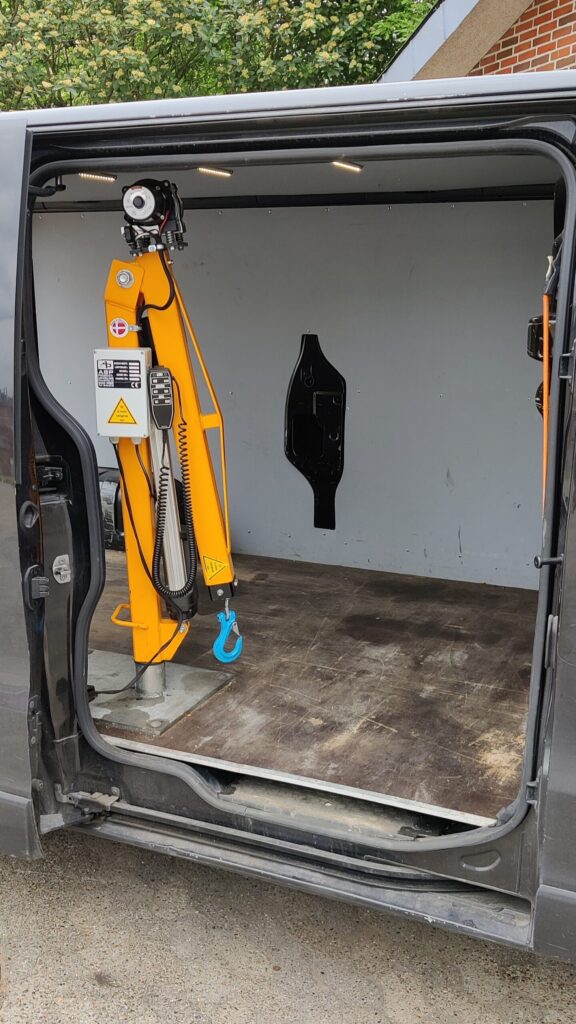

Knap On Crane Electric Lift – 350 kg

The selected crane is developed with a focus on high functionality, low weight, and stable, precise handling in daily operations.

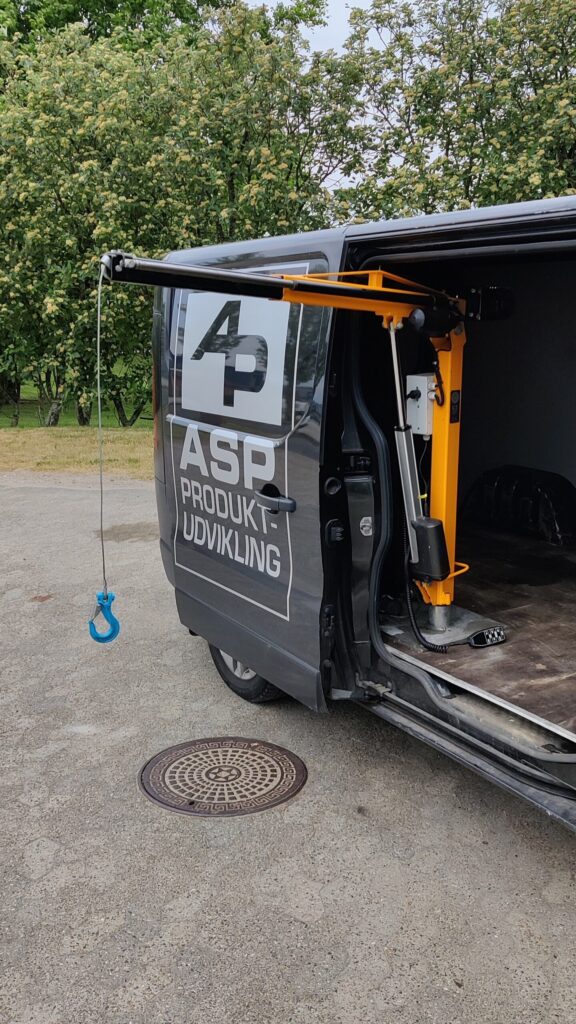

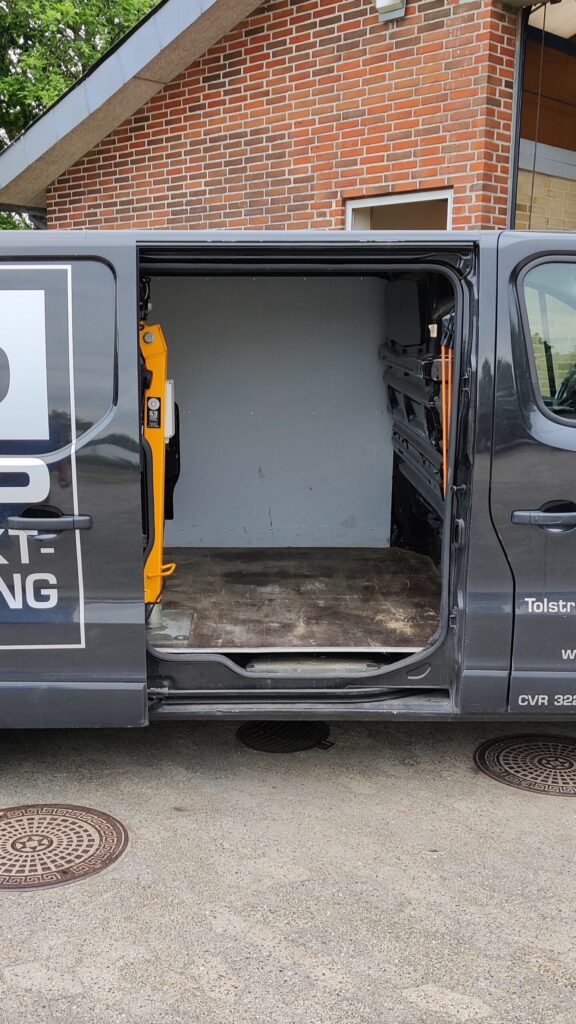

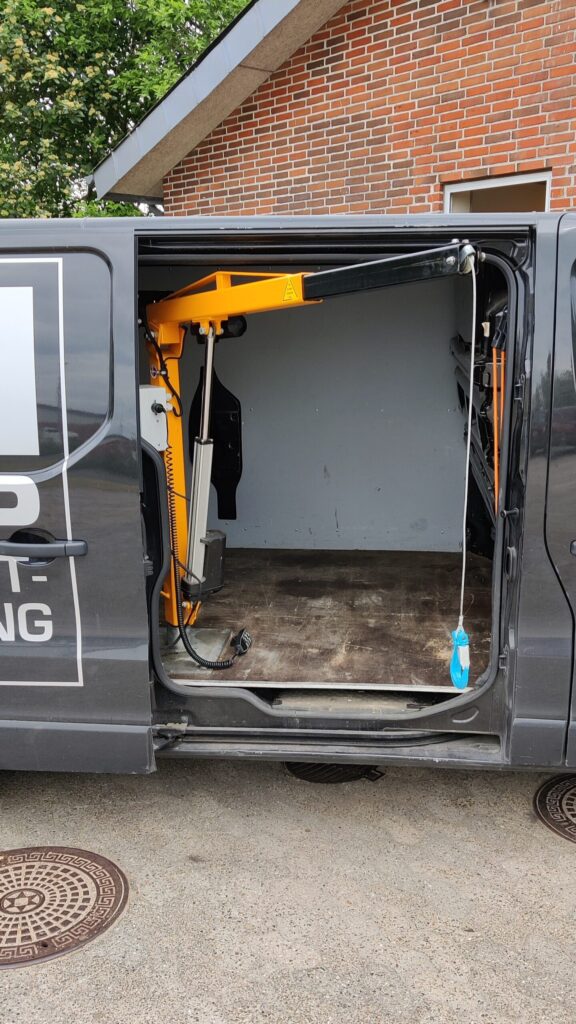

The crane is installed in the side door and can both reach outside the vehicle and rotate towards the front of the cargo area. It can rotate throughout the entire cargo space, allowing employees to reach equipment along the full length of the vehicle, all the way to the rear.

This makes it particularly suitable for service work and transportation of heavier items, where ergonomics and safety are important factors.

When the crane is not in use, it takes up minimal space and requires no additional permits or vehicle inspection after installation.

Specifications:

Lifting capacity: 350 kg
Weight: 38 kg
Outreach: Up to 1.5 metres

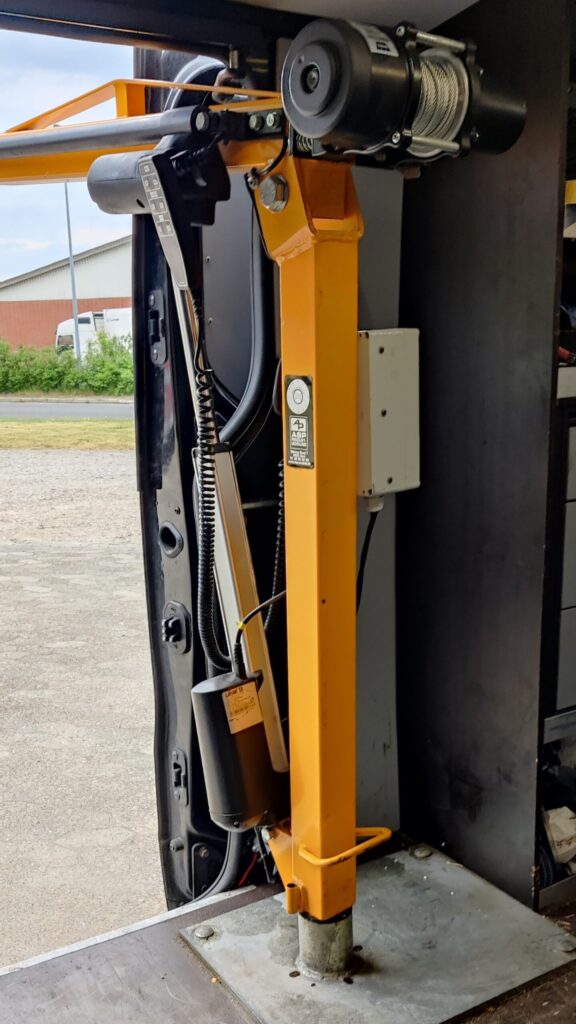

Operation: Electric lift and electric extension

Universal base plate system for maximum flexibility

The crane is mounted using our universal base plate system, which is designed to provide maximum flexibility across different vehicles and work tasks.

The solution allows employees at ASP Product to lift the crane directly out of the base plate in the side door and move it to the base plate installed at the rear of the vehicle.

This means the crane can quickly be positioned exactly where it is needed for the day’s tasks. The transfer is completed without tools, and all Knap On cranes fit the same base plate system.

This provides an economical and extremely flexible solution that can be adapted to changing requirements.

Improved workplace ergonomics and efficiency

A crane installed in a service vehicle creates a significantly better working environment by eliminating heavy manual lifting during daily operations.

Employees can safely and efficiently handle products and machinery without exposing themselves to unnecessary risk of injuries or physical strain.

At the same time, the crane improves efficiency during both service tasks and deliveries, as one person can now perform lifting operations that previously required two people or significant physical effort.

Cranes for All Types of Vehicles and Lifting Applications

Our cranes can be installed in all types of vans, panel vans and flatbed trucks, as well as on trailers and in workshops. Whether you need a crane for your van or a flexible solution that can be used in multiple locations, we have solutions to suit your everyday needs.

We offer cranes in several variants designed for a wide range of applications, from light service tasks to heavy lifting in the construction and civil engineering industries. Our range includes everything from fully manual cranes to fully electric solutions, depending on your requirements for lifting capacity, reach and operation.

We also offer a wide range of accessories and optional equipment, making the cranes suitable for many different tasks in everyday operations.

All our cranes are developed with one purpose: to take care of heavy lifting and contribute to a better working environment.

What all our solutions have in common is that they are tailored to the customer's needs, vehicle and specific applications. This ensures that you get a safe, stable and reliable crane solution that performs optimally in your daily work. See more
