Crane for Volkswagen Crafter

A van crane does not have to be complex to create significant value in everyday work. In this customercase, we take a closer look at a Volkswagen Crafter where we installed a Knap On Crane Hand Hydraulic with manual extension.

The solution was chosen by a customer who transports 60-litre plastic containers, which the driver cannot safely lift manually. The requirement was therefore a simple, robust, and reliable van crane without the need for electrical connection or major vehicle modifications.

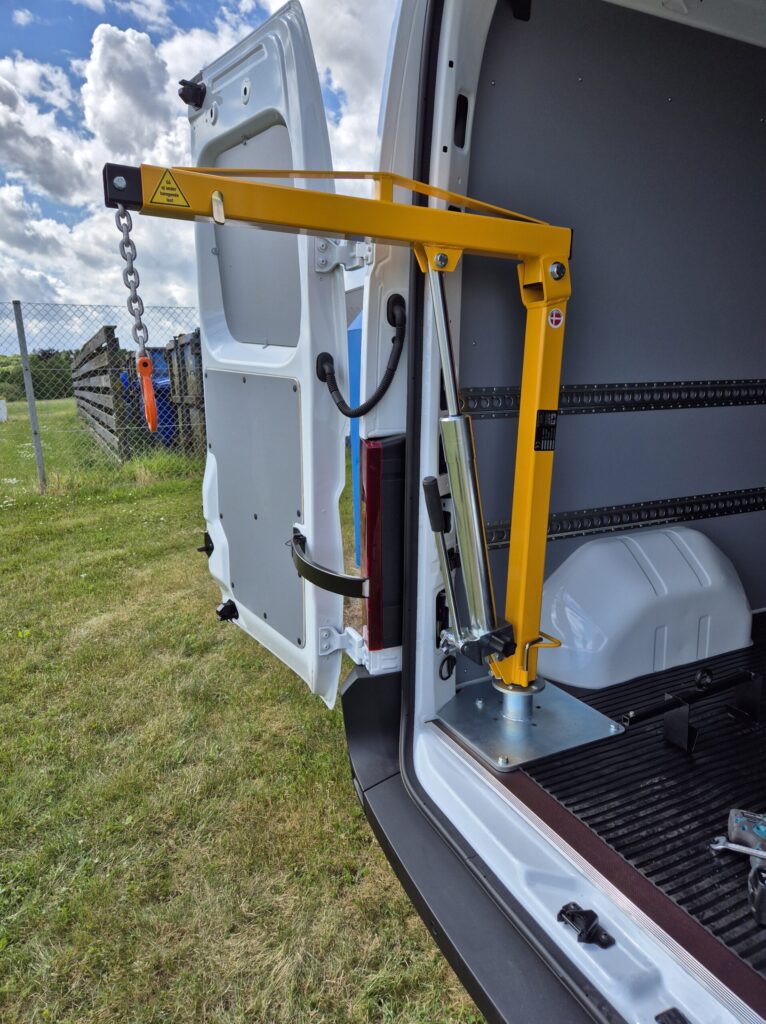

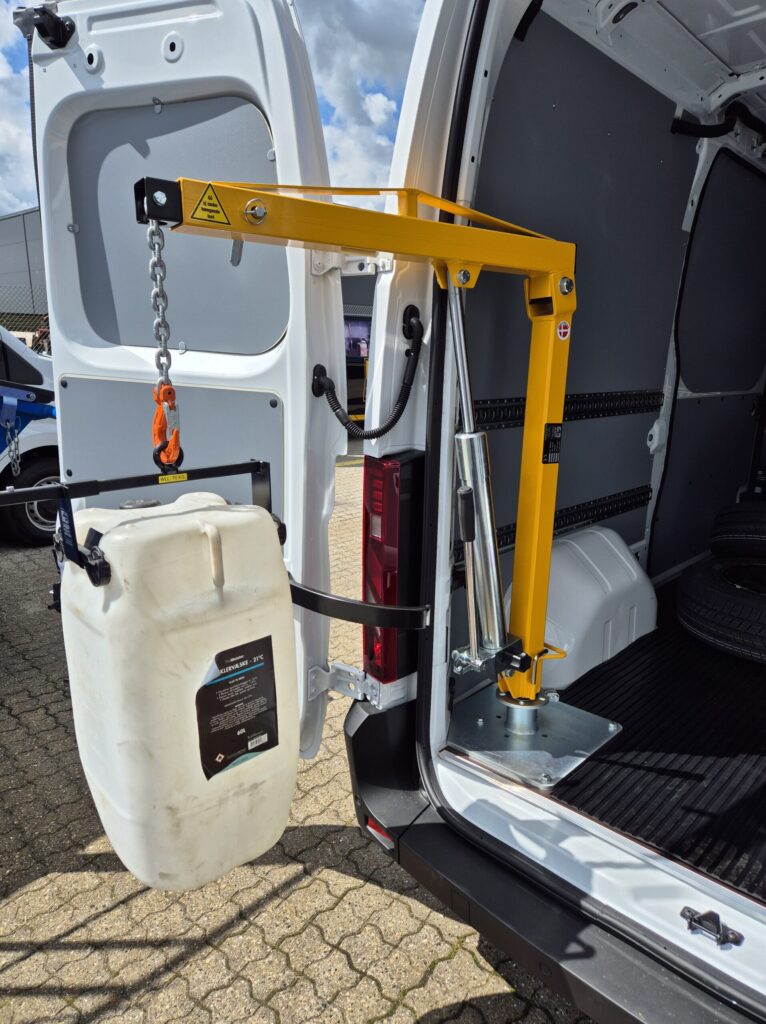

Knap On Crane Hand Hydraulic with manual extension

This model is our simplest crane solution for vans and at the same time a highly effective solution for daily lifting tasks.

The crane is:

Mounted in the rear door
Equipped with a manual extension of 1.5 metres
Has a maximum lifting capacity of 400 kg
Hand hydraulic – no electrical connection required

The hand hydraulic operation means that the crane is always ready for use. There are no electrical components that need to be connected or serviced, making it particularly suitable for companies looking for a simple and reliable lifting solution.

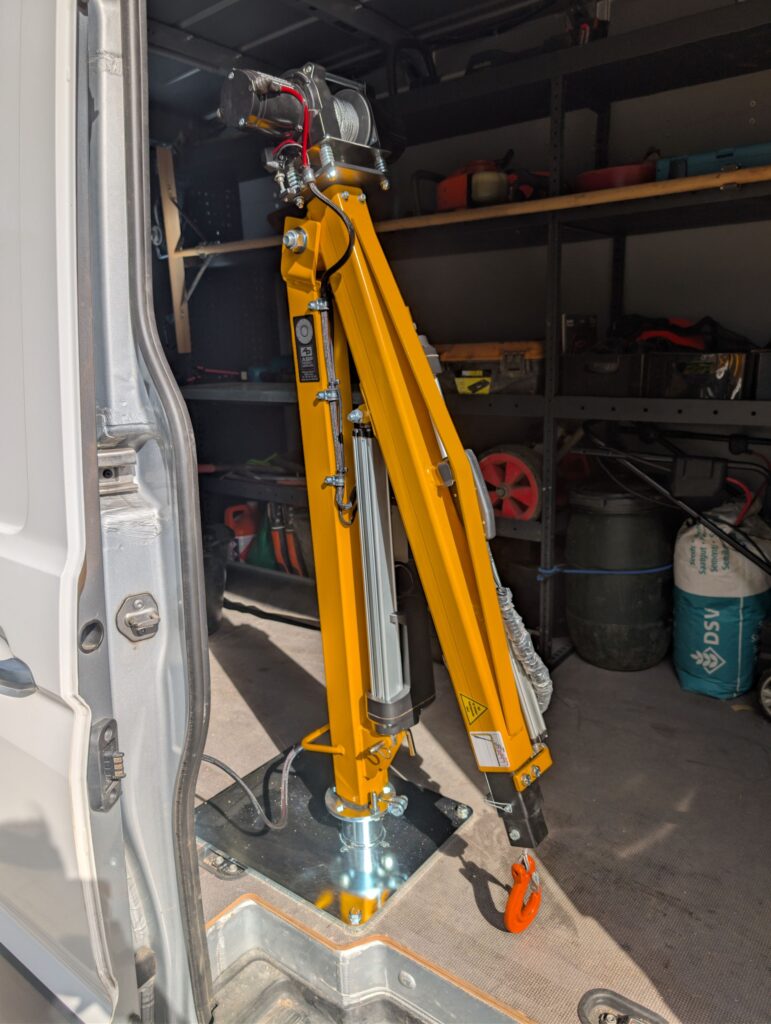

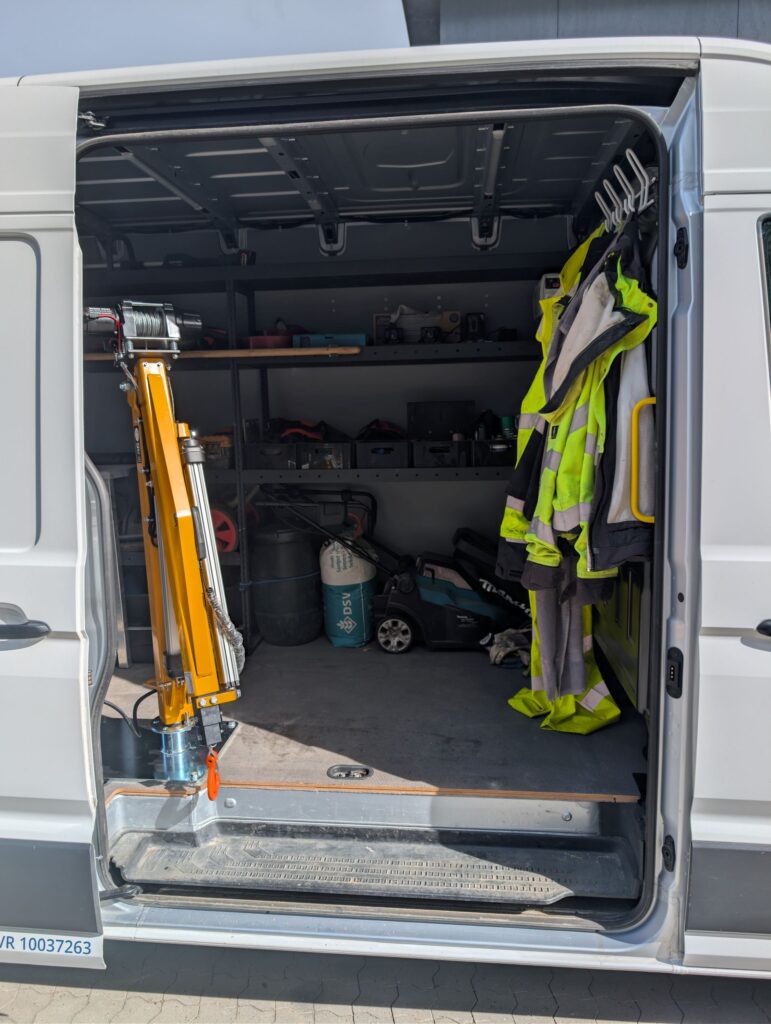

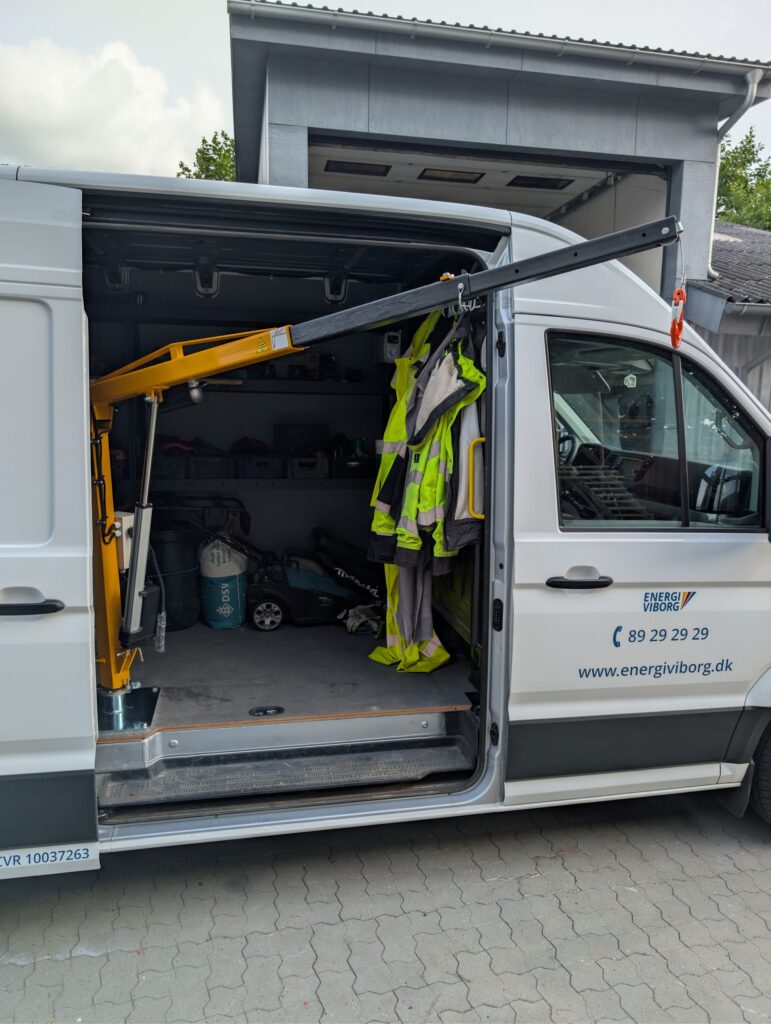

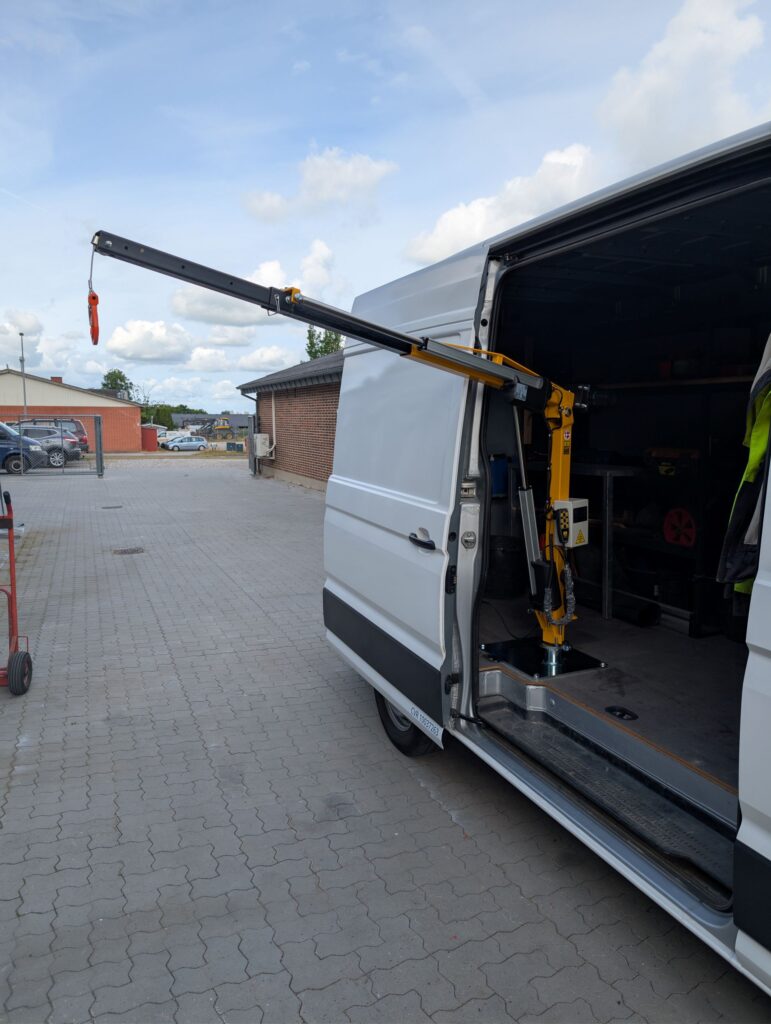

Knap On Crane Electric Lift with additional extension

This model is a flexible electric crane solution for vans and is especially suitable for daily lifting tasks where additional reach is required.

The crane is:

Mounted in the side door of a Volkswagen Crafter
Equipped with electric lifting and additional extension up to 2 metres
Has a maximum lifting capacity of 350 kg close to the vehicle and 150 kg at full extension
Connected to the vehicle’s 12V power supply

The electric function makes the crane quick and easy to operate during daily use, while allowing materials to be handled even when they are positioned further away from the vehicle.

The combination of electric lifting and additional extension makes this solution ideal for tasks where reach and flexibility are essential for an efficient working day.

Flexibility with universal base plate system

The crane is mounted in our universal base plate system, which provides exceptional flexibility in everyday use.

This means the crane can easily be lifted out of the base plate and moved to:

Another van with a mounted base plate
A trailer
Another work unit with a prepared mounting bracket

This solution allows companies to invest in one crane and use it across multiple vehicles. For businesses with several vehicles or changing requirements, it provides a flexible and cost-effective solution.

Cranes for All Types of Vehicles and Lifting Applications

Our cranes can be installed in all types of vans, panel vans and flatbed trucks, as well as on trailers and in workshops. Whether you need a crane for your van or a flexible solution that can be used in multiple locations, we have solutions to suit your everyday needs.

We offer cranes in several variants designed for a wide range of applications, from light service tasks to heavy lifting in the construction and civil engineering industries. Our range includes everything from fully manual cranes to fully electric solutions, depending on your requirements for lifting capacity, reach and operation.

We also offer a wide range of accessories and optional equipment, making the cranes suitable for many different tasks in everyday operations.

All our cranes are developed with one purpose: to take care of heavy lifting and contribute to a better working environment.

What all our solutions have in common is that they are tailored to the customer's needs, vehicle and specific applications. This ensures that you get a safe, stable and reliable crane solution that performs optimally in your daily work. See more
